S100(300)-12B+JZ15 Peristaltic Pump
[Product introduction]
Flow range: 0.16-500mL/min
Standard tube: tube service life more than 5000 hours
Stepper motor drive, integrated structure
Pump head: 2 or 4 roller for choice, 2 roller with slight higher flow rate, 4 roller lower impulse
Import potentionmeter knob to adjust the speed, also can adjust speed by 15 levels BCD DIP switch
Switch control for start/stop, also for clockwise/anticlockwise
Flow accuracy: ±1%
Power supply: DC 24V, can choose the Power adapter and realize 220V AC power supply
[Product parameter]
Product name |
S100(300)-12B+JZ15 Peristaltic Pump |
Pump head |
JZ15A(2 roller),JZ15B(4 roller) |
Start/Stop control |
Control start/stop by switch adjust range |
Direction control |
Clockwise and anticlockwise reversible, adjust by switch range |
Internal speed control |
Import potentionmeter to adjust speed, also can adjust speed by 15 levels BCD DIP switch |
Internal speed range |
0-100rpm (S100-12B+JZ15); 0-300rpm (S300-12B+JZ15); |
Speed deviation |
≤±0.5% |
Tube available |
14#,19#,16#,25#,17# |
Start/Stop control |
Press and adjust the switch spot to run the peristaltic pump; close switch spot(port 5 & port 7 short circuit) to shut down the pump |
Power supply |
11.4-25.2V DC；or 100-240V AC（match different power adapter） 50/60Hz |
Operation condition |
temperature:0℃-40℃, Relative humidity: ＜80% |
Weight |
600g |
Power supply |
11.4-25.2V DC；or 100-240V AC（match different power adapter） 50/60Hz |
[Selection guide]
Model |
Pump head roll QTY |
Optional channel |
Tube |
Speed range （RPM） |
Flow range（mL/min） |
Recommend |
S100-12B+JZ15A |
2 |
1 |
14# |
1-100 |
0.16-16.45 |
High accuracy micro flow, slight higher flow rate |
19# |
0.35-35.87 |
|||||
16# |
0.62-62.86 |
|||||
25# |
1.0-108.49 |
|||||
17# |
1.4-164.13 |
|||||
S100-12B+JZ15B |
4 |
1 |
14# |
1-100 |
0.11-11.70 |
Suitable for lower volume high accuracy filling,lower impulse |
19# |
0.26-25.75 |
|||||
16# |
0.40-40.18 |
|||||
25# |
0.63-62.75 |
|||||
17# |
0.75-98.37 |
|||||
S300-12B+JZ15A |
2 |
1 |
14# |
1-300 |
0.16-49.59 |
high accuracy micro flow, slight higher flow rate |
19# |
0.35-108.56 |
|||||
16# |
0.62-194.87 |
|||||
25# |
1.0-340.68 |
|||||
17# |
1.4-513.77 |
|||||
S300-12B+JZ15B |
4 |
1 |
14# |
1-300 |
0.11-34.88 |
suitable for lower volume high accuracy filling,lower impulse |
19# |
0.26-77.04 |
|||||
16# |
0.40-121.88 |
|||||
25# |
0.63-192.39 |
|||||
17# |
0.75-253.09 |
Remarks: above data of JZ15A、JZ15B pump head are actual tested by pharmed®tube

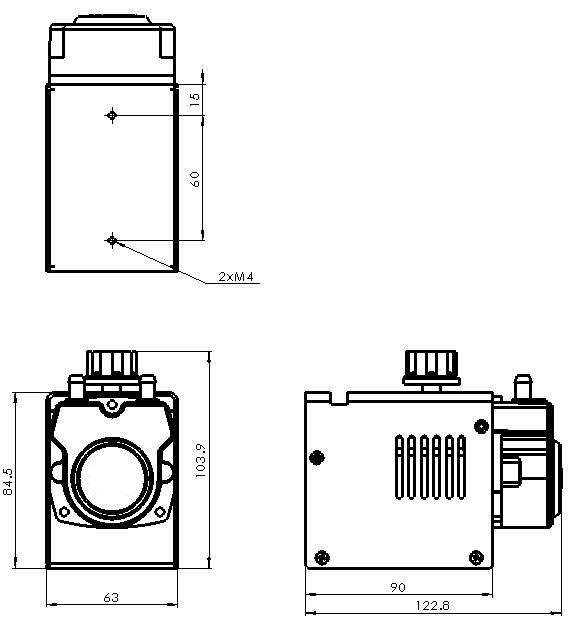

[Installation dimension]
