Product name

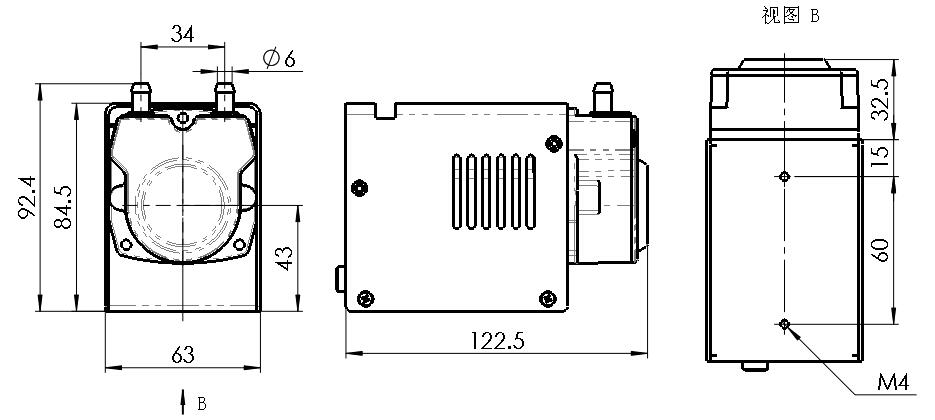

S300-11B+JZ15 Peristaltic Pump

Pump head

JZ15A(2 rollers),JZ15B(4 rollers)

CPU

ARM Cortex-0 Core,STM32 Chip

Motor drive chip

SANYO THB6128 drive chip

Start/Stop

support

Direction control

Clockwise and anticlockwise reversible

Internal speed control

BCD DIP switch adjustable

External speed control

0-10kHz impulse control, or 0-5V,0-10V,4-20mA analog signal control for choice, 0-10KHz for standard

Internal speed  range

1-300rpm, 15 levels, standard configuration: 20,40,60,80,100,120,140,160,180,200,220,240,260,280,300rpm; customize service support

External speed range

0-300rpm, speed resolution 0.1rpm, colinearity

Communication control

RS485 communication, Modbus communication protocol, communication control can’t be exist together with other external control

Speed deviation

≤±0.5%

Tube available

14#,19#,16#,25#,17#

Stop/Start

Press and adjust the switch spot to run the peristaltic pump; close switch spot(port 5  & port 7 short circuit) to shut down the pump

Direction control

Switch control the touch pot for start operation, peristaltic pump run; close switch spot(port 6 &port 7 short circuit), peristaltic pump run at anticlockwise direction

Power supply

11.4-25.2V DC；or 100-240V AC（match different power adapter）  50/60Hz

Operation condition

temperature:0℃-40℃, Relative humidity: ＜80%

Weight

800g
