S300-2B+JZ15 Peristaltic Pump
[Product introduction]
Flow range: 0.16-513.77mL/min
Standard tube: tube service life more than 5000 hours
Stepper motor drive, integrated structure
Pump head: 2 or 4 roller for choice, 2 roller with slight higher flow rate, 4 roller lower impulse
15 levels BCD DIP switch, or external signal to adjust the speed
Switch control for start/stop, also for clockwise/anticlockwise
Flow accuracy: ±1%
Power supply: DC 24V, can choose the Power adapter and realize 90-250V AC power supply
[Product feature]
Pump head |
JZ15A(2 rollers),JZ15B(4 rollers) |
Start/Stop |
support |
Direction control |
Clockwise and anticlockwise reversible |
Internal speed control |
BCD DIP switch adjustable |
External speed control |
0-10kHz impulse control, or 0-5V,0-10V,4-20mA analog signal control for choice, 0-10KHz for standard |
Internal speed range |
1-300rpm, 15 levels, standard configuration: 20,40,60,80,100,120,140,160,180,200,220,240,260,280,300rpm; customize service support |
External speed range |
0-300rpm, speed resolution 0.1rpm, colinearity |
Communication control |
RS485 communication, Modbus communication protocol, communication control can’t be exist together with other external control |
Speed deviation |
≤±0.5% |
Tube available |
14#,19#,16#,25#,17# |
Stop/Start |
Press and adjust the switch spot to run the peristaltic pump; close switch spot(port 5 & port 7 short circuit) to shut down the pump |
Direction control |
Switch control the touch pot for start operation, peristaltic pump run; close switch spot(port 6 &port 7 short circuit), peristaltic pump run at anticlockwise direction |
Power supply |
11.4-25.2V DC；or 100-240V AC（match different power adapter） 50/60Hz |
Operation condition |
temperature:0℃-40℃, Relative humidity: ＜80% |
[Selection guide]
Model |
Pump head roll QTY |
Optional channel |
Tube |
Speed range （RPM） |
Flow range（mL/min） |
Recommend |
S300-2B+JZ15A |
2 |
1 |
14# |
1-300 |
0.16-49.59 |
high accuracy micro flow, slight higher flow rate |
19# |
0.35-108.56 |
|||||
16# |
0.62-194.87 |
|||||
25# |
1.0-340.68 |
|||||
17# |
1.4-513.77 |
|||||
S300-2B+JZ15B |
4 |
1 |
14# |
1-300 |
0.11-34.88 |
suitable for lower volume high accuracy filling,lower impulse |
19# |
0.26-77.04 |
|||||
16# |
0.40-121.88 |
|||||
25# |
0.63-192.39 |
|||||
17# |
0.75-253.09 |
Remarks: above data of JZ15A、JZ15B pump head are actual tested by pharmed®tube

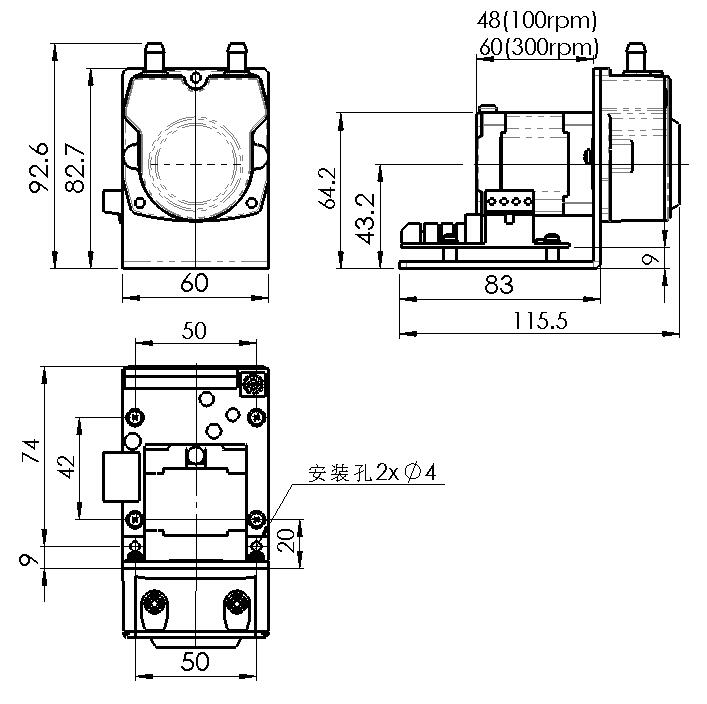

[Installation dimension]
