Model

BT300-2J

Product name

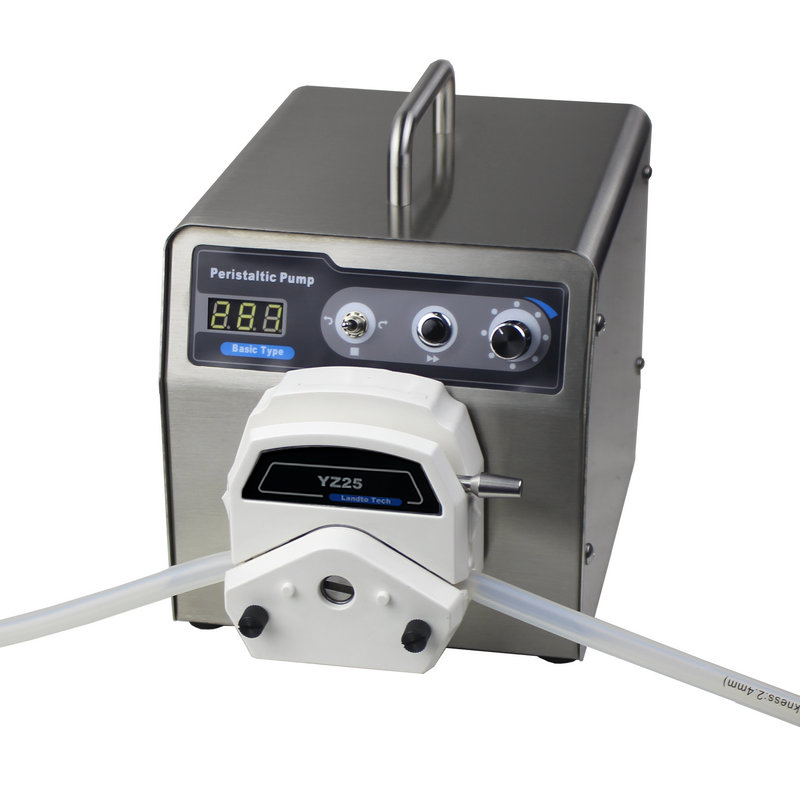

Speed Adjustable Peristaltic Pump

CPU

ARM Cortex-0 Core,STM32 Chip

Motor drive chip

SANYO THB6128 drive chip

Speed adjustable range

1-300RPM

Speed resolution

1RPM

Display function

3 digit LED display the speed

Direction control

Clock-wise/counter clock-wise direction reversible

Operation mode

Rotating code switch combine

Full speed function

Full speed button to realize fast filling and drain

Power-down memory function

After power on, running as before

External control function

Different model external control module for Start/Stop, direction, flow rate;

0-5V、0-10V、4-20mA、0-10KHz  4 module for option

Communication function

Optional communication module, RS485 communication control (via Modbus protocol)

Noise control

Intelligent temperature control system, reduce the noise at maximum

Foot switch control

Optional

Power

Consumption

<50W

Power supply

Wide AC90-260V，50Hz/60Hz

Operation condition

Temperature 0 to 40 °C, Relative humidity < 80%

Driver weight

4.2KG

IP rating

IP31

Driver

Pump head

Roller of the pump head

Channel QTY

Tube

Speed range

(rpm)

Flow range

 （mL/min）

BT300-2J

YZ15

3

1,2

13#

1-300

0.08-23

14#

0.27-88.7

19#

0.52-165.1

16#

0.86-270.2

25#

1.8-558.3

17#

3.2-968.3

18#

4.1-1343

YZ25

3

1,2

15#

1-300

1.7-530

24#

2.9-871

BZ15-14

3

1,2

14#

1-300

0.23-88.7

BZ15-16

16#

0.79-270.2

BZ25A

24#

2.5-850
