Model

BS100-1AQ Speed adjustable peristaltic pump

CPU

ARM Cortex-0 Core,STM32 Chip

Motor drive chip

SANYO THB6128 drive chip

Speed adjustable range

0.1-100RPM

Speed resolution

0.1（＜100RPM)

Display function

3 LED tube display the speed

Direction control

Clock-wise/counter clock-wise direction reversion, import toggle switch

Power switch

With LED indicator function

Full speed function

Full speed button to realize fast filling and drain

Power-down memory function

After power on, running as before

External control function

Different model external control module for Start/Stop, direction, flow rate;

0-5V、0-10V、4-20mA、0-10KHz  4 external control module for option

Communication function

Optional communication module, RS485 communication control (via Modbus protocol)

Intelligent temperature control

Cooling fun temperature control system, reduce noise

Foot switch control

Optional

Consumption power

<25W

Power supply

Wide AC90-260V，50Hz/60Hz

Operation condition

Temperature 0 to 40 °C, Relative humidity < 80%

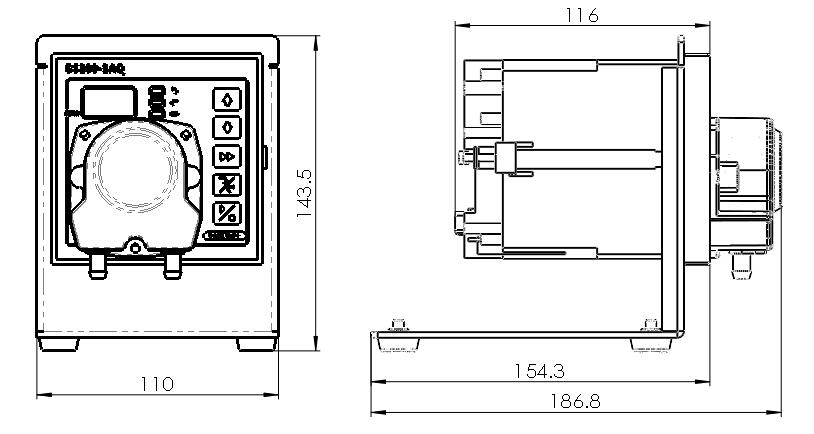

Dimensions

186mm×110mm×143mm

Driver weight

1.3KG

IP rate

IP31

Driver

Pump head

Roller of the pump head

Channel QTY

Tube

（RPM）

Speed range

（mL/min）

Flow range

BS100-1AQ

TH10A

4

1

0.6×1

0.1-100

0.0027-2.7

1×1

0.0059-6.28

2×1

0.020-20.12

3×1

0.038-37.47

TH10B

8

1

0.6×1

0.1-100

0.0017-1.7

1×1

0.0044-4.22

2×1

0.014-13.04

3×1

0.023-21.41

JZ15A

2

1

14#

0.1-100

0.016-16.45

19#

0.035-35.87

16#

0.062-62.86

25#

0.10-108.49

17#

0.14-164.13

JZ15B

4

1

14#

0.1-100

0.011-11.70

19#

0.026-25.75

16#

0.040-40.18

25#

0.063-62.75

17#

0.075-98.37
