Model

BT100-2J

Product name

Speed Adjustable Peristaltic Pump

CPU

ARM Cortex-0 Core,STM32 Chip

Motor drive chip

SANYO THB6128 drive chip

Speed adjustable range

0.1-100RPM

Speed resolution

0.1（＜100RPM)

Display function

3 digit LED display the speed

Direction control

Clock-wise/counter clock-wise direction, import toggle switch

Operation mode

Membrane keypad operate, convenient, quick and reliable

Full speed function

Full speed button to realize fast filling and drain

Power-down memory function

After power on, running as before

External control function

Different model external control module for Start/Stop, direction, flow rate;

0-5V、0-10V、4-20mA、0-10KHz  4 module for option

Communication function

Optional communication module, RS485 communication control (via Modbus protocol)

Intelligent temperature control

Cooling fun intelligent temperature control system, reduce noise

Foot switch control

Optional

Power

Consumption

<35W

Power supply

Wide AC90-260V，50Hz/60Hz

Operation condition

Temperature 0 to 40 °C, Relative humidity < 80%

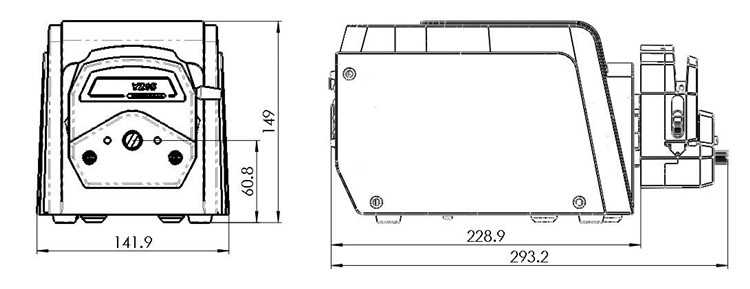

dimension

225mm×143mm×148mm (doesn’t including pump head  )

Driver weight

3.5KG

IP rate

IP31

Driver

Pump head

Roller of the pump head

Channel QTY

Tube

Speed range

（RPM）

Flow range

（mL/min）

BT100-2J

DG-1（2,4,6）

6

1,2,4,6

0.6×1

0.1-100

0.003-3.27

1×1

0.007-6.7

2×1

0.02-20.60

3×1

0.04-37.12

DG-1（2,4,6）

10

1,2,4,6

0.6×1

0.1-100

0.0026-2.64

1×1

0.006-5.96

2×1

0.017-16.19

3×1

0.028-27.65

YZ15

3

1,2

13#

0.1-100

0.008-7.45

14#

0.027-29.87

19#

0.052-55.7

16#

0.086-90.4

25#

0.18-180.6

17#

0.32-308.0

18#

0.41-460.0

YZ25

3

1,2

15#

0.1-100

0.17-175.0

24#

0.29-350.0

BZ15-14

3

1,2

14#

0.1-100

0.023-24.5

BZ15-16

16#

0.079-79.5

BZ25A

24#

0.25-270.4
