Model

BT600-2J

Product name

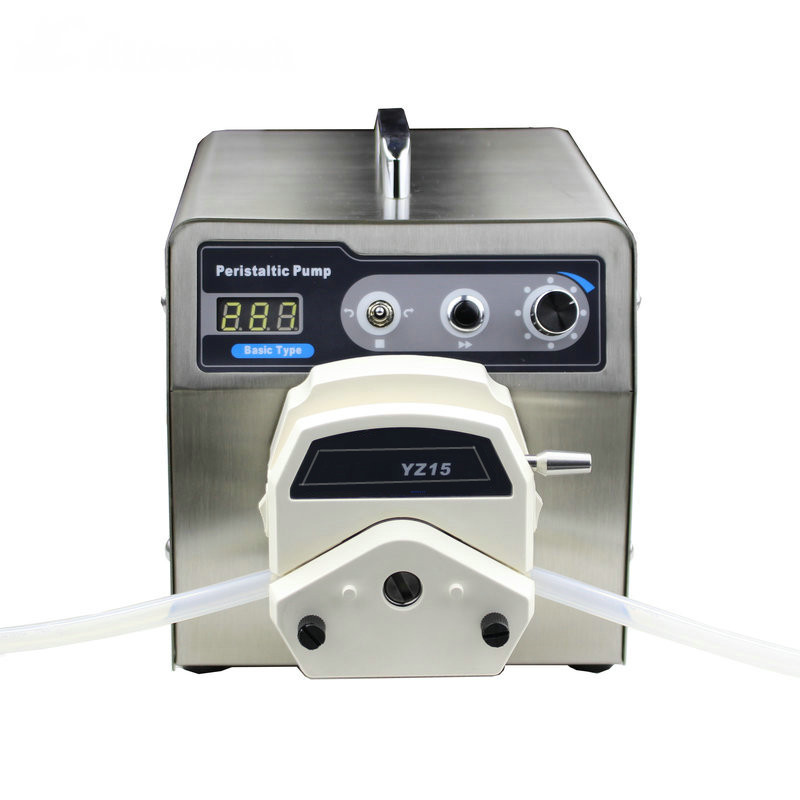

Speed Adjustable Peristaltic Pump

CPU

ARM Cortex-0 Core,STM32 Chip

Motor drive chip

THB6128 SANYO THB6128 drive chip

Speed adjustable range

1-600RPM

Speed resolution

1RPM

Display function

3 digit LED display the speed

Direction control

Clock-wise/counter clock-wise direction reversible

Operation mode

Membrane keypad adjust the speed, also support external signal adjust speed

Full speed function

Full speed button to realize fast filling and drain

Power-down memory function

After power on, running as before

External control function

Different model external control module for Start/Stop, direction, flow rate;

0-5V、0-10V、4-20mA、0-10KHz  4 module for option

Communication function

Optional communication module, RS485 communication control (via Modbus protocol)

Noise control

Intelligent temperature control system, reduce the noise at maximum

Foot switch control

Optional

Power

Consumption

<70W

Power supply

Wide AC90-260V，50Hz/60Hz

Operation condition

Temperature 0 to 40 °C, Relative humidity < 80%

Driver weight

4.2KG

IP rate

IP31

Driver

Pump head

Roller of the pump head

Pump head QTY

Tube

Speed range

（RPM）

Flow range

（mL/min）

BT600-2J

YZ15

3

1,2

13#

1-600

0.08-46.10

14#

0.27-178.1

19#

0.52-336.9

16#

0.86-556.2

25#

1.8-1176.6

17#

3.2-2111.6

18#

4.1-2416

YZ25

3

1,2

15#

1-600

1.7-1066.6

24#

2.9-1856

BZ15-14

3

1,2

14#

1-600

0.23-150

BZ15-16

16#

0.79-489.9

BZ25A

24#

2.5-1630
