WT600-2J+KZ25 (6000ml/min) _Basic type peristaltic pump_腾龙公司

Product model

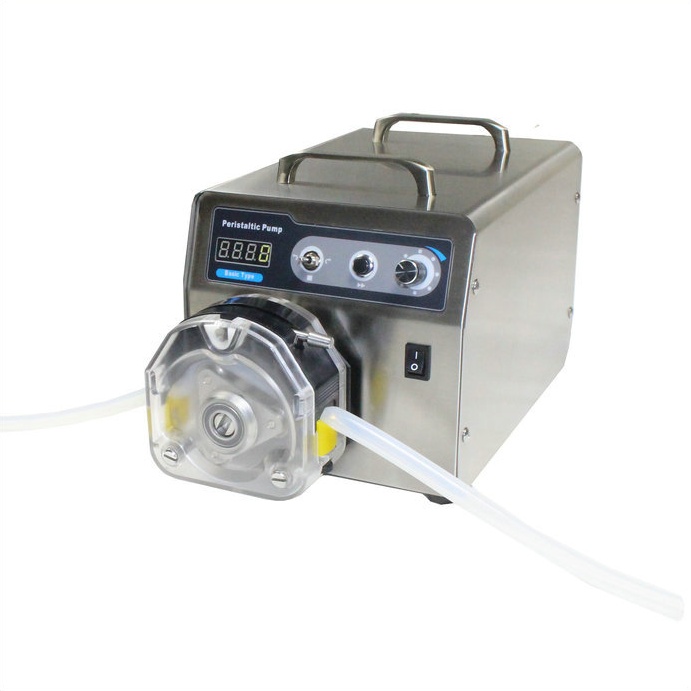

WT600-2J Speed Adjustable Peristaltic Pump

[Product introduction]

Flow range: 4.2-6000mL/min

Timing function, add liquid medium timing and quantitative, more convenient

Various pump head for optional, YZ series、BZ series

Working mode: speed, flow, timing

DC brushless motor drive, no maintenance, reliable

Import rotary knob, switch control, lifetime above 100000 times above

[Application]

pharmacy, fine chemical

Water reducer

Tube centrifuge

Spray drying machine

[Technical parameter]

Model	WT600-2J
Product name	Speed Adjustable Peristaltic Pump
CPU	ARM Cortex-0 Core,STM32 Chip
Brushless motor driver	DBLS-07
Speed range	40-600RPM
Speed resolution	1RPM
Working mode	Speed, flow, timing
Display function	4 digit LED display the speed or flow rate alternatively
Direction control	Clock-wise/counter clock-wise direction reversible
Timing function	Auto Start/Stop according to preset time, timing range 1S-99Hr
Operation mode	Adjust speed, flow rate or time via votary knob
Full speed function	Full speed button to realize fast filling and drain
Power-down memory function	After power on, running as before
External control function	Different model external control module for Start/Stop, direction, flow rate; 0-5V、0-10V、4-20mA、0-10KHz 4 module for option
Communication function	Optional communication module, RS485 communication control (via Modbus protocol)
Output function	Start/Stop, direction output, frequency 0-10KHz
Foot switch control	Optional
Power Consumption	<200W
Power supply	AC180V-260V 50Hz,；110V,60Hz可定制
Operation condition	Temperature 0 to 40 °C, Relative humidity < 80%
Driver weight	5.8KG
IP rate	IP31

[Selection guide]

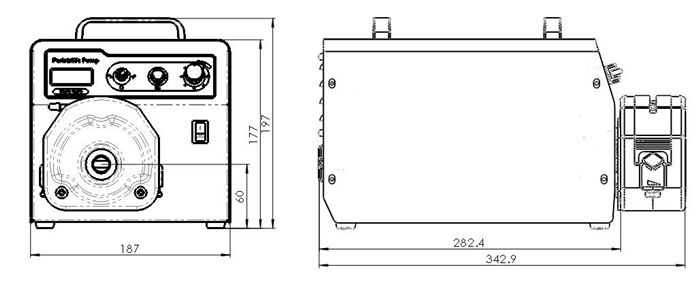

[Dimension]
