Model

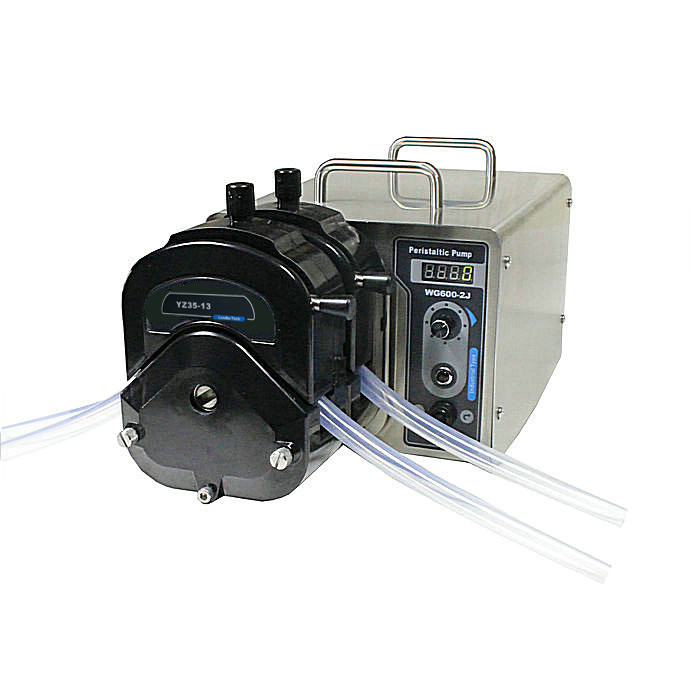

WG600-2J Industrial Peristaltic Pump

CPU

ARM Cortex-0 Core,STM32 Chip

Motor driver

Brush-less motor driver

Speed adjustable range

40-600RPM

Speed resolution

1RPM

Working mode

Speed, flow rate, timing

Display function

4 digit LED display the speed  or flow rate alternatively

Direction control

Clock-wise/counter clock-wise direction reversible

Timing function

Auto Start/Stop at preset time, timing range 1S-99Hr

Operation mode

Rotating code switch combine with  Membrane keypad adjust the speed, also support external signal adjust speed

Full speed function

Full speed button to realize fast filling and drain

Power-down memory function

After power on, running as before

External control function

different model external control module for Start/Stop, direction, flow rate;

0-5V、4-20mA、0-10KHz, 3 external module for option

Communication function

Optional communication module, RS485 communication control (via Modbus protocol)

Foot switch control

Optional

Power consumption

＜300W

Power supply

AC180V-260V  50Hz

Operation condition

Temperature 0 to 40 °C, Relative humidity < 80%

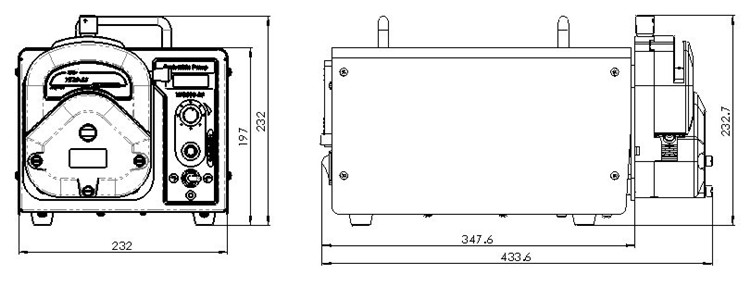

Dimension

370mm×235mm×240mm

Driver weight

11.5KG

IP rate

IP31

Driver

Pump head

Roller of the pump head

Pump head QTY

Tube

Speed range

（RPM）

Flow range

（mL/min）

WG600-2J

YZ35-

13

3

1,2

73#

40-600

465.0-7870

82#

681.6-12000
