Filling machine
Product model
Mini06 peristaltic pump
Features:
Flow range: 9ml / min -150ml / min
Speed range: 0.1-60 rpm
Current: 250-300mA
Application:
It has been widely used in the fields of experiment,
biochemical analysis, pharmaceutical, fine chemical, biological engineering, pharmaceutical filling, food, paper, ceramics, water treatment, environmental protection, powder and so on liquid solution...
Parameters:
Flow rate |
9ml /min -150ml/ min |
Tube Size |
1*3, 2*4, 3*5mm(ID* OD) |
Speed |
0.1-60 rpm |
Current |
250-300mA |
Voltage |
DC 6V or 12V for choice |
Running direction |
CW/CCW |
Working environment |
temperature 0-40 ℃, relative humidity ＜ 80% |
Weight |
150g |
Selection Guide for Tube Size:
Mini 06 peristaltic pump |
6V |
12V |
||
Min(starting voltage) |
Max voltage(6V) |
Min(starting voltage) |
Max voltage(12V) |
|
1*3mm (ID*OD) |
9ml/min(3V) |
27ml/min |
10ml/min(6V) |
26ml/min |
2*4mm (ID*OD) |
27ml/min(3V) |
82ml/min |
25ml/min(6.5V) |
71ml/min |
3*5mm (ID*OD) |
65ml/min(3.5V) |
152ml/min |
60ml/min(6.5V) |
152ml/min |

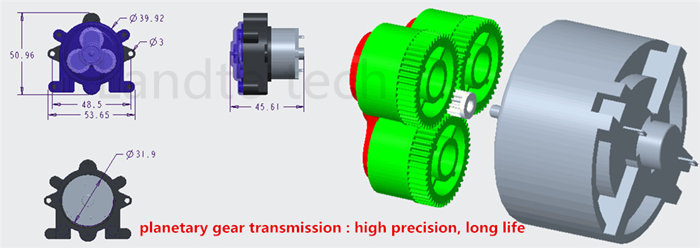

Product size:
