Product model

Mini08 peristaltic pump

[Features]

concise appearance, compact structure, but powerful

High quality DC motor drive, durable and long life-time

Standard is Silicone tubing inlaid. imported Pharmed tube for choice.

Fixed speed ,various of flow rate for choice

plate-mounted

[Parameters]

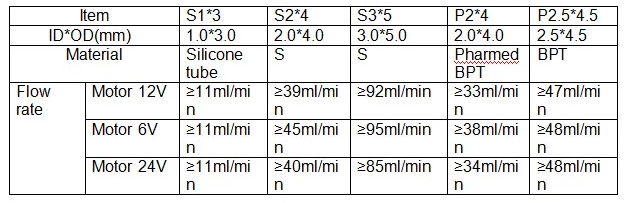

Flow rate 3-95ml/min

Suitable tubing 1*3mm, 2*4mm, 3*5mm.........

Power supply DC6V,DC12V,DC24V for choice

Power consumption 5-8w

Working environment temperature0-40°C,humidity<80%

weight 0.2kg

Application Liquid dose pump

[Application]

1, Medical usage: for liquid transfer, sampling, dispensing

2, Chemical engineering usage: sample analysis, dispensing liquid

3, Ink printer: for transferring ink, cleaning pipeline

4, Laboratory use: liquid dispensing, extract liquid,

5, Beverage: dispensing, filling

6, Environmental usage: transferring and sampling sewage

7, Factory usage: for liquid dispensing

8, Family usage: watering flower, garden irrigation

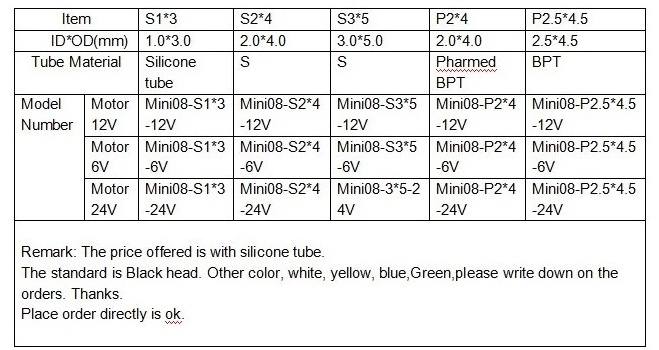

[Selection guide]

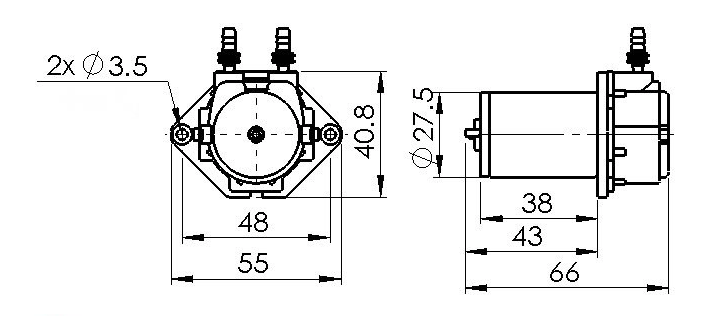

[Dimension]
