Filling machine
Product Model
G600-1Z+KZ25
[Introduction]
Flow range: ≤6000mL/min
DC gear motor drive, fixed speed, higher flow
Power supply: DC12V or DC24V for option
Base installation, suitable for industrial use
Feature
KZ25A Quick load Peristaltic pump head
Flow range: 0.28-6061mL/min
The shell is import TICONA PPS PC, anti-corrosion
Tube card structure, no need human intervention, easy and fast operation
Multi-pump head available
[Technical parameter]
Pump head |
KZ25A |
Speed range |
≤600rpm, fixed speed, various speed motor choice:20rpm,25rpm,30rpm,50rpm,60rpm,83rpm,166rpm,200rpm,240rpm,500rpm,600rpm. Wide flow range |
Tube available |
15#,24#,35#,36# |
Power supply |
DC12V/2A or DC24V |
Working condition |
temperature:0℃-40℃, Relative humidity: <80% |
Weight |
2700g |
[Selection guide]
Model |
Pump head roll QTY |
Optional channel |
Tube |
Speed range (RPM) |
Flow range(mL/min) |
Gxx-1Z+KZ25A |
3 |
1 |
15# |
≤600 |
≤1800 |
24# |
≤3200 |
||||
35# |
≤4500 |
||||
36# |
≤6000 |

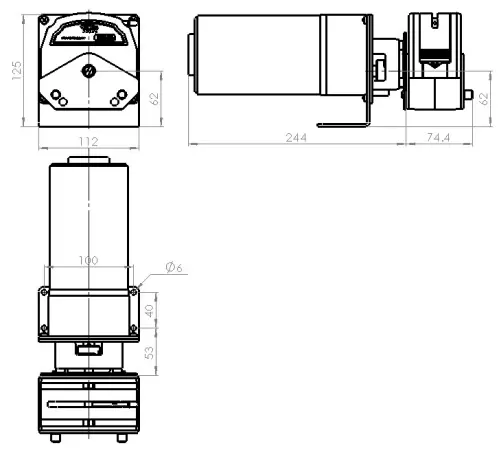

[Dimention]
