Product model
Gxx-1J+TH15 Peristaltic Pump
[Product introduction]
Flow range: ≤178.1mL/min
AC synchronous motor
Fixed speed, many kinds speed for choice, spring pump head, long-life
220 AC power supply
Common steel and stainless steel panel for choice
[Technical parameter]
Product name |
Gxx-1J+TH15 Peristaltic Pump |
Pump head |
TH15A(lock structure),TH15B(connector structure) |
Speed control |
Fixed speed |
Various speed for option |
5rpm,10rpm,15rpm,20 rpm,25 rpm,30 rpm,40 rpm,50 rpm,60 rpm,80 rpm，110rpm |
Tube available |
13﹟，14﹟,19﹟,16﹟,25﹟ |
Power supply |
AC220V |
Operation condition |
temperature:0℃-40℃, Relative humidity: ＜80% |
Weight |
700g |
[Selection Guide]
Model |
Pump head roller quantity |
Available channels |
Tube |
Speed range （RPM） |
Flow range（mL/min） |
Recommend |
Gxx-1J+TH15A |
2 |
1 |
13# |
≤110 |
≤7.30 |
high accuracy micro flow, slight higher flow rate |
14# |
≤27.30 |
|||||
19# |
≤50.88 |
|||||
16# |
≤84.26 |
|||||
25# |
≤178.1 |
Remarks: product mode G5-1J+TH15A” “5” are actual speed; when the speed is 60r[,, model No. Should be “G60-1J+TH15A”

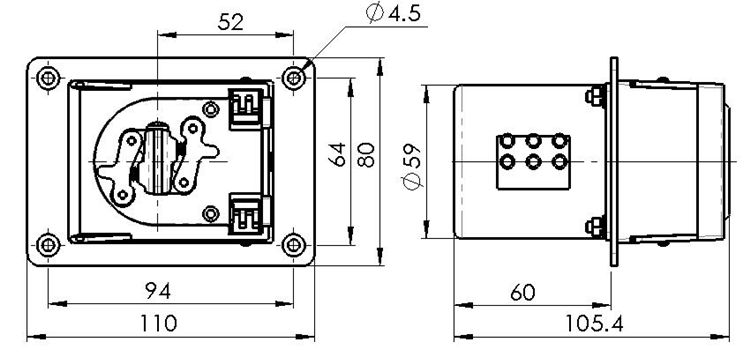

[Installation dimension]
