Product name

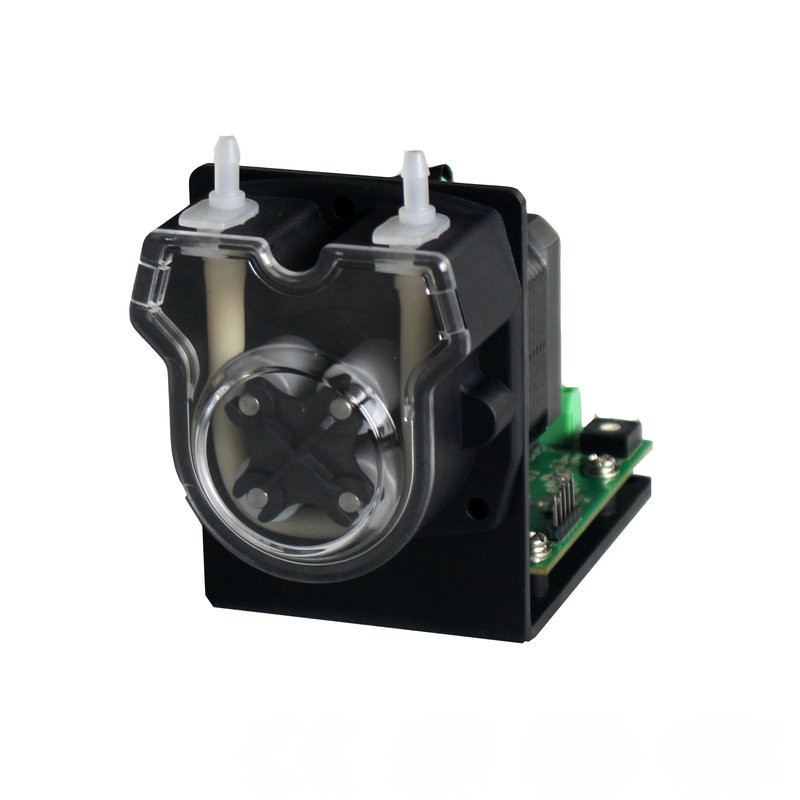

S100-2B+JZ15  Peristaltic Pump

Pump head

JZ15A(2 rollers),JZ15B(4 rollers)

Start/Stop

support

Direction control

Clockwise and anticlockwise reversible

Internal speed control

BCD DIP switch adjustable

External speed control

0-10kHz impulse control, or 0-5V,0-10V,4-20mA analog signal control for choice, 0-10KHz for standard

Internal speed range

1-100rpm, 15 levels adjust, standard configuration: 5,10,15,20,25,30,35,40,45,50,60,70,80,90,100rpm; customize service available

External speed range

0-100rpm, speed resolution 0.1rpm, colinearity

Communication control

RS485 communication, Modbus communication protocol, communication control can’t be exist together with other external control

Speed deviation

≤±0.5%

Tube available

14#,19#,16#,25#,17#

Stop/Start

Press and adjust the switch spot to run the peristaltic pump; close switch spot(port 5  & port 7 short circuit) to shut down the pump

Direction control

Switch control the touch pot for start operation, peristaltic pump run; close switch spot(port 6 &port 7 short circuit), peristaltic pump run at anticlockwise direction

Power supply

11.4-25.2V DC；or 100-240V AC（match different power adapter）  50/60Hz

Operation condition

temperature:0℃-40℃, Relative humidity: ＜80%

Weight

600g

Model

Pump head roll QTY

Optional channel

Tube

Speed range

（RPM）

Flow range（mL/min）

Recommend

S100-2B+JZ15A

2

1

14#

1-100

0.16-16.45

High accuracy micro flow, slight higher flow rate

19#

0.35-35.87

16#

0.62-62.86

25#

1.0-108.49

17#

1.4-164.13

S100-2B+JZ15B

4

1

14#

1-100

0.11-11.70

suitable for lower volume high accuracy filling,lower impulse

19#

0.26-25.75

16#

0.40-40.18

25#

0.63-62.75

17#

0.75-98.37
