Product name

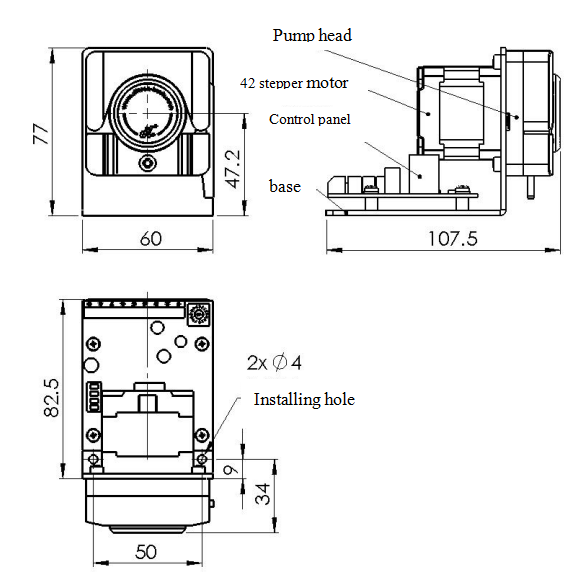

S100-2B+TH10 Micro flow Peristaltic Pump

Pump Head

TH10A(4 Roller),TH10B(8 Roller)

Start/Stop

Start/Stop available

Direction Control

Clockwise and anticlockwise Direction reversible

Internal speed control

BCD DIP switch adjustable

External speed control

0-10kHz impulse control, or 0-5V,0-10V,4-20mA analog signal control for choice,

0-10KHz for standard

Internal speed range

1-100rpm, 15 levels adjustable, standard configuration: 5,10,15,20,25,30,35,40,45,

50,60,70,80,90,100rpm Customized service support

External speed range

0-100rpm, speed resolution 0.1rpm, colinearity

Communication control

RS485 communication, Modbus communication protocol, communication control

can’t be exist together with other external control

Speed deviation

≤±0.5%

Tube available

0.6×1，1×1,2×1，2.4×0.8，3×1，0.38×0.86，0.76×0.86，1.02×0.86，1.6×0.8，

2.06×0.86，2.79×0.86, 3.17×0.86，3.2×0.8

Start/Stop

Press and adjust the switch spot to run the peristaltic pump; close switch spot(port 5&port 7 short circuit) to shut down the pump

Direction control

Switch control the touch pot for start operation, peristaltic pump run; close switch spot(port 5&port 7 short circuit), peristaltic pump run at anticlockwise direction

Power supply

11.4-25.2V DC；or 100-240V AC（match different power adapter）  50/60Hz

Operation conditon

temperature:0℃-40℃, Relative humidity: ＜80%

Weight

540g

Model

Pump head roll QTY

Optional channel

Tube

Speed range

（RPM）

Flow range（mL/min）

Recommend model

S100-2B+TH10A

4

1

0.6×1

≤100

0.0027-2.7

 micro flow, slight higher flow rate

1×1

0.0059-6.28

2×1

0.020-20.12

3×1

0.038-37.47

S100-2B+TH10B

8

1

0.6×1

≤100

0.0017-1.7

High accuracy,lower impulse

1×1

0.0044-4.22

2×1

0.014-13.04

3×1

0.023-21.41
