BZ series Peristaltic Pump Head

[Product introduction]

Flow range: 0.027-1630mL/min

Running extremely stable, flow rate accuracy higher than other pump head

Dupont brand PC material, clear shell, facility to observe pumping status

Multi-pump head available

[Selection guide]

BZ25A pump head bear high pressure or negative pressure, also transport high viscosity liquid

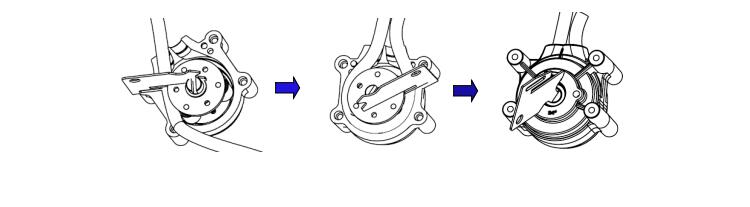

[Tube installation]

Open pump head shell, load the tube, turn the specific key (or using hand), tube between the roller and shell

Re-install the shell, turn the main axle of the pump head, adjust tube position

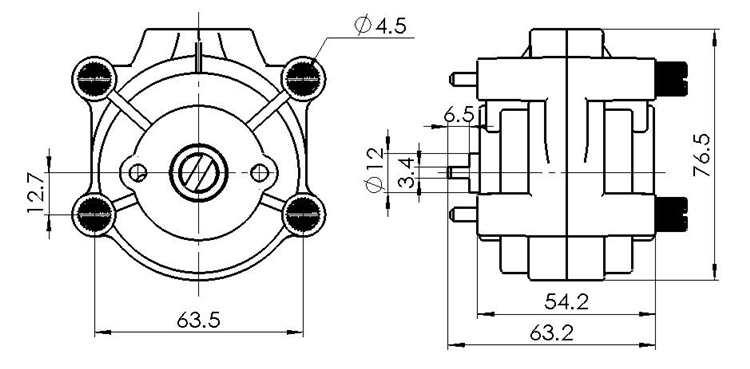

[Dimension]
