Product model
DG seriesMulti- tube Peristaltic pump head
[Product introduction]
Flow range: 0.0002-48mL/min
For slight flow rate, high accuracy, multi-channel transportation
Suitable for different thickness tube
Multiple pump heads available
Separate card design, easy to change the tube
[Direction guide]
Model |
Shell material |
Roller material |
Channel number |
Available tube (ID*wall) |
Speed （RPM）
|
Max flow rate （mL/min） |
Weight （KG） |
DG-1A |
304 stainless steel
|
6 |
1 |
0.6×1，1×1,2×1，3×1， 0.38×0.86， 0.76×0.86， 1.02×0.86， 1.6×0.8， 2.06×0.86， 2.79×0.86 3.17×0.86 |
≤100 |
48 |
0.2-0.9 |
DG-2A |
2 |
||||||
DG-4A |
4 |
||||||
DG-6A |
6 |
||||||
DG-8A |
8 |
||||||
DG-12A |
12 |
||||||
DG-1B |
304 stainless steel
|
10 |
1 |
≤100 |
32 |
0.2-0.9 |
|
DG-2B |
2 |
||||||
DG-4B |
4 |
||||||
DG-6B |
6 |
||||||
DG-8B |
8 |
||||||
DG-12B |
12 |
DG-1A、DG-2A……DG-12A series pump head: 6roller, lager flow rate
DG-1B、DG-2B……DG-12B series: 10 roller, lower flow rate, high accuracy, low impulse
0.6×1，1×1,2×1，3×1 tubes are made in Chin, others are import
[Tube installation]
Press twist plate （DG-1A、DG-1B, twist plate included) or card bevel and take out the card
Put the tube in the groove and fix the tube on STOP 2 ends, STOP distance 72mm, keep same flow rate of each channel
Put the card into pump body, installation finished

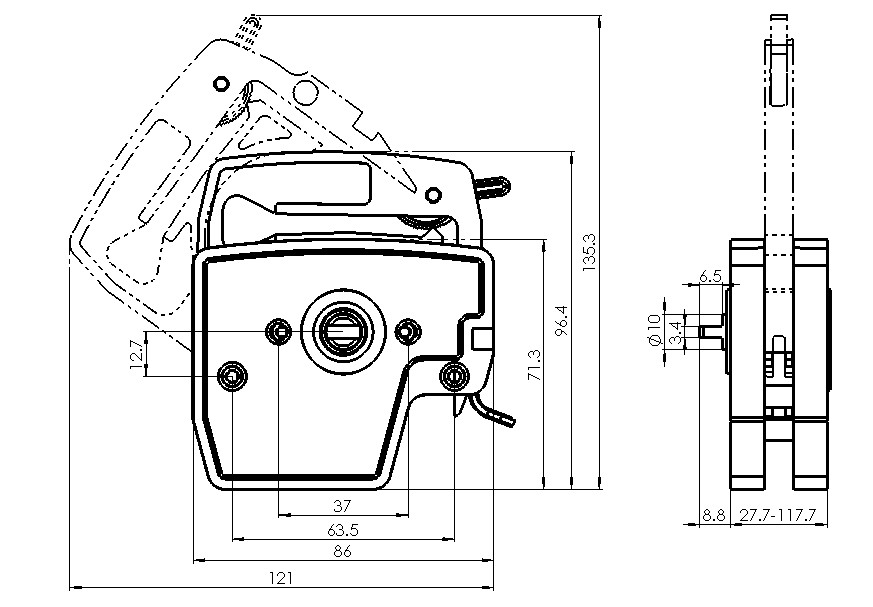

[Dimension]
