Product model

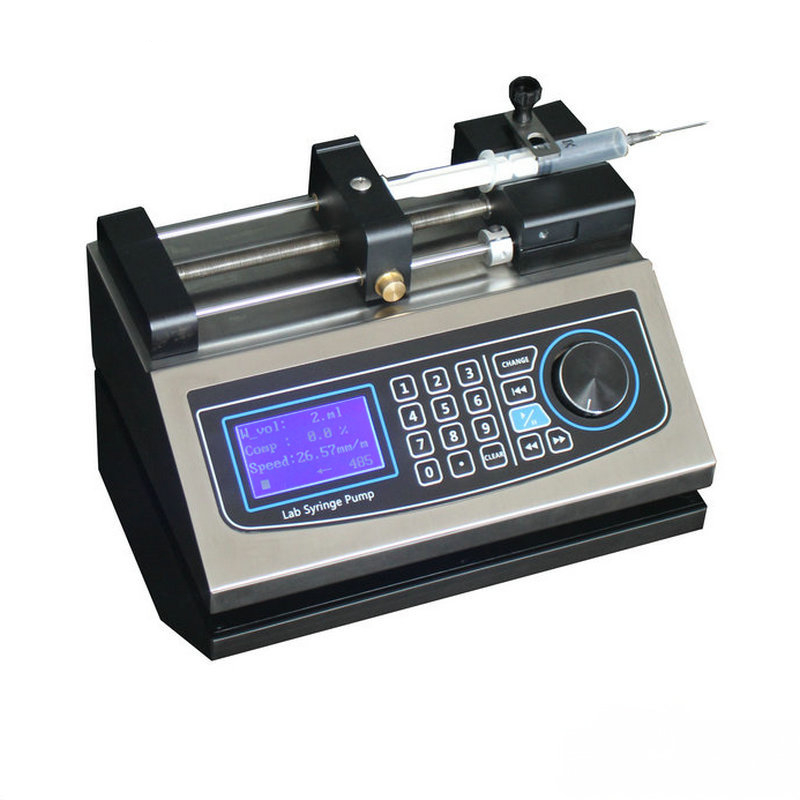

LSP01-3B  electrospinning syringe pump

[ Product Introduction]

LSP01-3B is a single-channel perfusion/extract syringe pump for the electrospinning industry with a one-piece construction. Excellent electromagnetic compatibility, ESD≥IV (IEC 61000-4-2) and excellent anti-interference performance.

Single channel perfusion/extract Syringe Pump, mainly used in laboratory , integrated structure.

It can fill different specification injectors, suitable for high accuracy, small volume liquid transportation

LSP01-3B inner inject function: choose the injector from the list, or input injector inner diameter directly

Big LCD screen, digital knob combined with membrane keypad, simple and fast

4 operation mode: perfusion , extract, perfusion and extract, continuous mode

Power-down memory function, after restarting:

a)Running as before, no need to reset (EEPROM record the parameter)

b)Running according to the preset parameter, or stop(Power-down under flow mode,)

Blocking protection function: when it is blocked, the pump stop working and alert

Adopt RS485 communication, controlled through background software

External port for input/output control function

Flow calibration function, get more accurate flow rate

Injection protect function: prevent the injector damaged by adjusting the place of limited block

[Application]

Electrospinning,Lab, chemical, electrophysiology, Pharmaceutical

[ Technical parameter ]

Operation mode	perfusion , extract, perfusion and extract, continuous mode
Execution unit number	1
Maximum route distance	140mm
Routing resolution	0.156μm
Liner speed range	5μm/min-65mm/min (flow volume=liner speed x injector inner sectional area)
Liner velocity adjust resolution	5μm/min
Routing control accuracy	deviation≤±0.5% (distance ≥ 30% route )
Rated liner pushing force	＞90N
Choose injector	main supplier and model no. For choice
Injector defined	input injector inner diameter directly
Flow calibration	get more accurate flow rate by correcting the program
Operating parameter setting	get more accurate flow rate by correcting the program
Operating parameter setting	liquid volume distribution, injection time etc.
Display parameter selection	user can choose running status after restarting
Status signal output	2 OC door signal output for start/stop/direction
Control signal input	2 OC door signal output for start/stop/direction
Communication port	RS485
Dimensions	280×210×140(mm)
Weight	4.5kg
Power supply	AC 90V-260V/40W
Relative humidity	＜80%
Working temperature	0℃-40℃

[ Selection Guide ]

Model	Injector specification	Injector inner diameter (mm)	Flow range reference (μl/min-ml/min)
LSP01-3B	10μl	0.50	0.001-0.0128
	25μl	0.80	0.0025-0.0327
	50μl	1.10	0.0048-0.0618
	100μl	1.60	0.0101-0.1307
	250μl	2.30	0.0208-0.2701
	500μl	3.25	0.0415-0.5392
	1ml	4.72	0.0875-1.1373
	2ml	9.00	0.3181-4.1351
	5ml	13.10	0.6739-8.7608
	10ml	16.60	1.0821-14.068
	20ml	19.00	1.4176-18.429
	30ml	23.00	2.0774-27.006
	60ml	29.14	3.3346-43.349

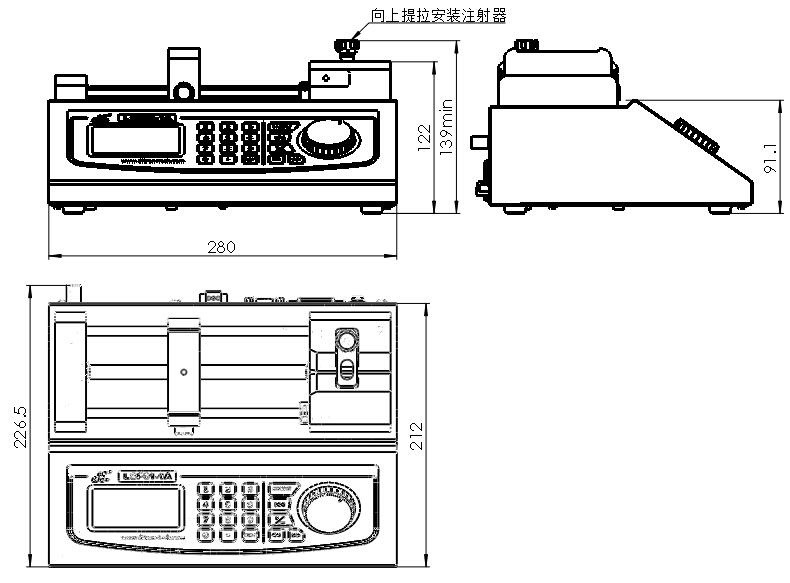

[Dimension]
