Filling machine
Product model

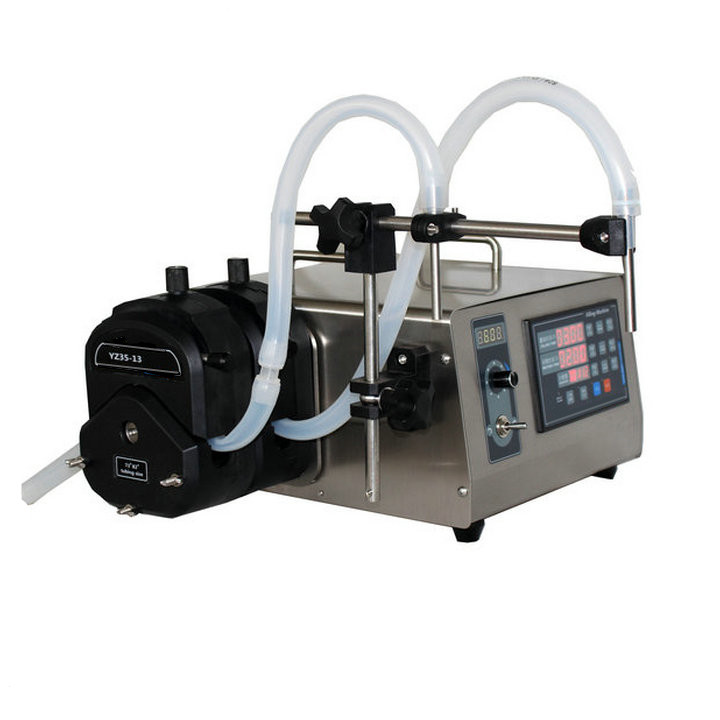

DC1(2)-3Z Peristaltic Pump filling machine
[Product Introduction]
Speed display function, LED display speed, speed range 40-600rpm, speed resolution 1rpm.
Liquid reflux function, right and left button switch to adjust the direction of liquid flow, convenient for liquid recovery.
The DC1-3Z is driven by a brushless dc motor,
DC brushless motor life long, no carbon brush, no maintenance, life than ordinary DC motor 10 times or more.
DC brushless motor has high operating precision, hall sensor detection position, speed is not affected by load and ambient temperature, filling precision is high
DC1-3Z plus with single channel ; GR2-3Z plus with double channel
Flow range: 0-12L/min
Filling range: 20ml-200L
Adopt LANTO-LED-DISPENSER-1 intelligent operation technology, imported chip STM32
control，With timing quantitative filling,high precision, Flow accuracy±1.5%
Liquid only touch the tube, doesn’t touch pump body, avoid secondary pollution
To Fill beverage, wine, petroleum, chemical, oil, pharmaceutical, pesticide and other viscosity or impurity liquid.
To fill printer toner
Rotary coding switch to adjust the speed, speed resolution 1rpm
Import potentiometer knob to adjust the flow
Manual, auto, preset filling 3 modes for choice
Filling time preset, interval time preset, filling times accumulate and preset
Foot switch control
Stainless steel nozzle
Excellent industrial design, 304 stainless steel shell
Power supply, AC 200-260V, 50Hz；110V voltage is available for customize
[Technical Parameters]
Model |
DC1-3Z single channel filling machine |
DC2-3Z double channel filling machine |
Filling nozzle |
single |
Double |
Filling pump |
G600-3Z+YZ35 Peristaltic pump |
|
Peristaltic pump tube |
Standard 82# tube |
|
CPU |
ARM Cortex-0 Core,STM32 Chip |
|
Filling range |
0.01-200L |
|
Flow range |
0-12L/min |
|
Speed display range |
40-600rpm |
|
Flow adjust |
Rotary coding switch to adjust the speed, speed resolution 1rpm |
|
Filling nozzle |
Single (more for choice) |
|
Filling mode |
Manual, auto, preset filling three modes for choice |
|
Display function |
4 digit LED display the filling time, 4 digit LED display pause time,5 digit LED display filling times |
|
Filling time preset |
0.01s-999.9s |
|
Interval time preset |
0.01s-999.9s |
|
Filling times |
59999 times at maximum |
|
Filling time preset |
Accumulate filling times, preset the filling time for choice |
|
Operation mode |
Membrane keypad and rotary encoded switch, more easy, prompt and reliable, Import potentiometer knob to adjust the flow |
|
Power-down memory function |
After power on, running as before |
|
Foot switch control |
Foot switch for start/stop |
|
Filling stand |
Both of the height and length of the stand are adjustable |
|
Fillin nozzle |
304 stainless steel nozzle |
|
Power consumption |
<400W |
|
Power supply |
AC200-260V，50Hz；AC110V 60Hz is available for customize |
|
Working condition |
Temperature 0 to 40 °C, Relative humidity < 80% |
|
Dimensions |
450mm×360mm×250mm（doesn’t including the filling support） |
|
Weight |
18KG |
|
IP rating |
IP31 |
|
[Selection guide]
Filling volume target（ml） |
Filling time（Sec） |
Actual filling volume（ml） |
Actual filling volume（ml） |
Actual filling volume（ml） |
Actual filling volume（ml） |
Actual filling volume（ml） |
250ml |
1.15 |
255 |
255 |
255 |
260 |
255 |
500ml |
2.11 |
505 |
505 |
505 |
510 |
505 |
1000ml |
4.23 |
1005 |
1010 |
1000 |
1005 |
1000 |
1500ml |
6.20 |
1495 |
1500 |
1490 |
1500 |
1495 |
2000ml |
8.22 |
2000 |
1995 |
1995 |
2005 |
2000 |
Remarks: 1. Above data are actual testing result of 5 times, at highest filling speed 2. Test media is water, the data is influenced by testing media |
||||||

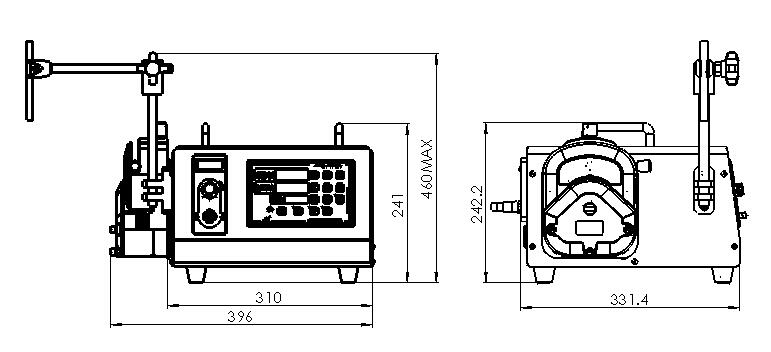

[ Dimensions ]
