Product model

GR1-6B Peristaltic Pump filling machine

[Product introduction]

Flow range: 0-500ml/min

Filling range: 0.1-8000mL

The best filling volume: 0.1-250mL (prolong time to add volume) Adopt LANDTO-LED-DISPENSER-1 intelligent operation technology,imported chip STM32

control，With timing quantitative filling,high precision, Flow accuracy±1%

Peristaltic pump filling, 42 stepper motor drive, 128 Times segmentation, low vibration, high precision; the liquid only through the tube, don't touch pump body, to avoid secondary pollution.

The tube is the import long-life Pharmed soft tube, anti-corrosion

To Fill beverage, wine, petroleum, chemical, oil, pharmaceutical, pesticide and other viscosity or impurity liquid.

To fill nutrient medium, medical reagent

Imported potentiometer knob to adjust the flow

Support running time preset, interval time preset, filling time memory and preset

Manual, auto, preset 3 filling modes for choice

Foot switch control

304 stainless steel nozzle

Excellent industrial design, 304 stainless steel shell

Widely power range, AC 90-260V, 50Hz/60Hz

[ Technical parameters ]

Model	GR1-6B Peristaltic Pump filling machine
Filling pump	S300-JZ15 peristaltic pump
CPU	ARM Cortex-0 Core, STM32 Chip
Motor drive chip	THB6128 SANYO driver chip
Filling tube	Import 17# long-life peristaltic pump tube (with the import food grade silicone connection tube )
Filling range	0.1-8000mL，
The best filling volume	0.1-250mL
Flow range	0-500mL/min
Flow adjust	potentiometer knob to adjust the flow
Filling nozzle	Single
Filling mode	Manual,auto, preset three filing modes for choice
Display	LED screen display the running data
Filling time preset	0.01s-999.9s
Interval time preset	0.01s-999.9s
Filling times	Maximum 59999 times
Filling time preset	Accumulate filling times, preset the filling time for choice
Operation mode	Membrane keypad operate, convenient, quick and reliable ;Import potentiometer knob to adjust the flow
Power-down memory function	After power on, running as before
Foot switch control	Foot switch control more convenient
Filling stand	Both height and length of the Stand are adjustable
Filling nozzle	304 stainless steel nozzle
Power consumption	<40W
Power supply	Wide voltage AC90-260V，50Hz/60Hz
Operation conditions	Temperature 0 to 40 °C, Relative humidity < 80%
Dimensions	250mmX180mm×140mm (doesn’t including the filling stand)
Weight	3.5KG
IP rating	IP31

[Selection guide]

Filling volume target（ml）	Filling time（Sec）	Actual filling volume（ml）	Actual filling volume（ml）	Actual filling volume（ml）	Actual filling volume（ml）	Actual filling volume（ml）
5ml	0.7	4.99	4.90	4.96	4.90	4.90
10ml	1.4	10.16	10.01	10.04	10.33	9.99
20ml	2.87	19.99	19.86	19.93	20.11	19.86
50ml	7.10	50.05	50.34	50.13	50.27	50.06
100ml	15	99.86	99.68	99.56	100.15	99.90
1 Above data are actual testing result of 5 times, at highest filling speed 2 Test media is water, the data is influenced by testing media 3 Flow volume decrease when media viscosity increases, or filling time increases

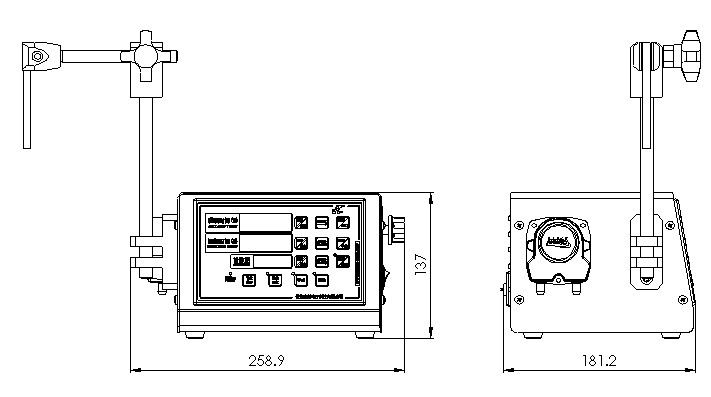

[ Dimensions]
